Features:
Material: ABS+PC
Power:0.5w
Size: 80mm*80mm* 25mm
Voltage: DC4.5V
Off delay time: 30+-5s
Luminous flux: 35lm (full power)
Color temperature: 2700-6500K
Specification
Item | NL1810 |
Input voltage | 3.7V 600mAh |
Power | 0.5W |
IP | 20 |
CCT | 3000K/4000K/6500k |
Lumen | 35lm |
Materials | ABS+PC |
Lifetime | 25000H |
Dimension | 80*80*25mm |
Description:
1. The product s wireless and easy to install and can be widely used in lockers, aisles,cupboards, wardrobes,corridors, toilets, bathroom kitchens, entrances, porches,bedroom bedsides and other desired places.
Installation diagram
This product can be installed in three ways: hanging, vertical, or with the double-sided adhesive 3M tape.

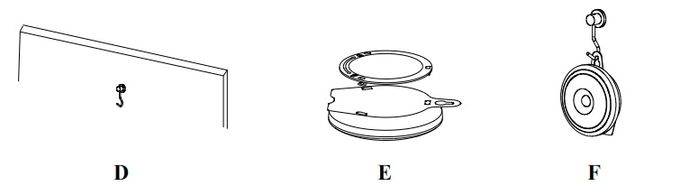

1. Hanging: Fix the hook on the mounting surface (Figure D). Secure the rear cover on the back of the product through the PC sheet (Figure E). Place the product equipped with the PC sheet off the hook (Figure F)

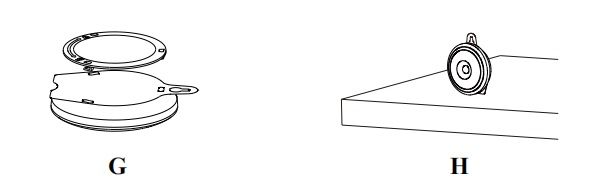

2. Vertical: Secure the rear cover on the back of the product through the PC sheet (Figure G).Place the product equipped with the PC sheet on the desk, bedside table or other desired places (Figure H)

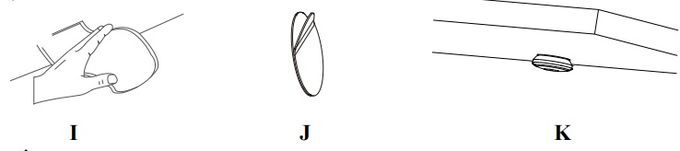

3. With the 3M double sided adhesive tape: Use a cloth to clean the mounting surface (Figure I). Tear off one side of 3M double-sided adhesive tape and paste it into the rear cover of the product (Figure J). Tear off the other side of the 3M double-sided adhesive tape and paste the product onto the mounting surface (Figure K).
|
|
|
|
